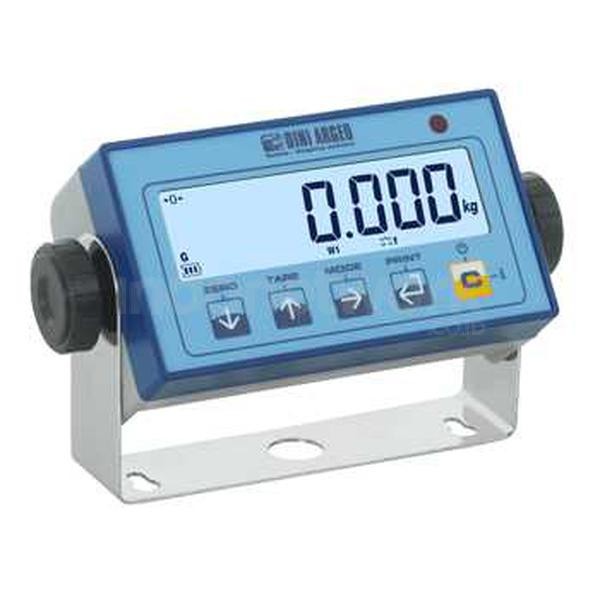

DFWLB Multifunction IP68 Weight Indicator

DFWLB": MULTIFUNCTION IP68 WEIGHT INDICATOR FOR INDUSTRY

Digital weight indicator for industrial environments, easy to install and use. The IP68 protection degree and the built-in long life battery make it particularly suitable for automotive and mobile weighing applications. Standard fitted with a support bracket with adjustable inclination. CE-M approvable (OIML R-76 / EN 45501).

• 5-key functional waterproof keypad.


• Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.


• Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.


• Suitable for use on the table, column, or wall.


• Fitted with fixing bracket with adjustable inclination.


• A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.


• Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved versions for legal for trade use.


• Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.


• Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.


• Digital calibration and Set-Up from keypad or from PC through DINITOOLS.


• Power supply through built-in rechargeable battery, with 60h operating time, and fitted with external battery charger.

• EC Type Approval (EN45501)


• OIML R76

• MAIN FUNCTIONS:
  - Zeroing
  - Automatic tare
  - Presettable tare
  - Printing in 1, 2 or 3 copies
  - Data transmission to PC.



• OPERATING MODES:
  - High Resolution Weighing x 10
  - Net/Gross or lb/kg conversion
  - Accumulation
  - Formula weighing
  - +/- Checkweighing
  - Percentage weighing
  - Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option)
  - Counting
  - In/Out Truck weighing
  - Hold and Peak.

• RS232/C bidirectional port on RJ11 connector for quick connection (optional RS485) on screw terminal, configurable for PC, PLC, or additional remote display.


• RS232/C bidirectional port configurable for connection to printer or labeller.
•
