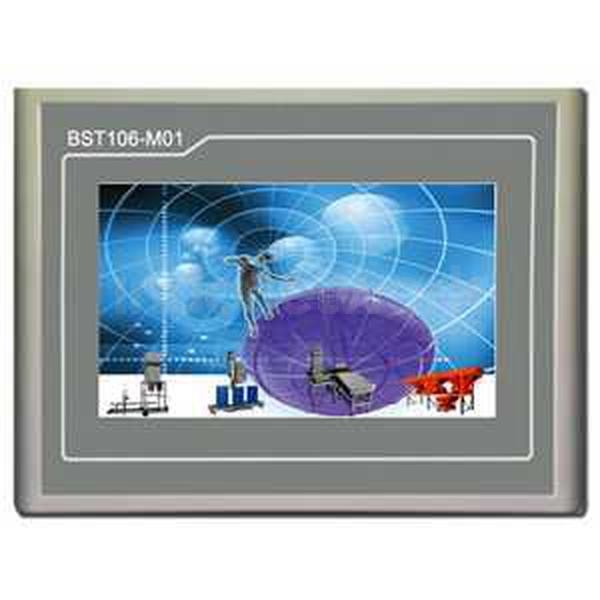

BST106-M10[FH] Weighing Controller Ration Packing Scale 4Scale Mode

Main Features:
 Suitable for Increment Ration Packing Scale [Four-Scale Mode: Four-hopper-weighing with two-speed feeding and one bag-clamping].
 EMC design with high anti-jamming capability, suitable for industrial environment.
 Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
 Loadcell Interface
 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
 24-bit High-precision and high-speed Σ-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
 Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
 I/O Interface
 7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
 Optional ‘Fast/Slow Feeding’ DOs for feeding control. Optional Slow Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
 4 Definable analog signal AO[0~10V] for weight signal output or ‘Fast/Slow Feeding’ control.
 Digital Communication Interface
 COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
 COM[RS232] for connecting RS232 Serial Printer.
 USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
 Software Function
 Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
 Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
 Load Calibration and Loss Calibration functions available.
 10 Formulas for packing control.
 Optional ‘Fall Value Auto Correction’ function.
 Optional ‘Auto Pause while Deviation Alarming’ and ‘Auto Re-feeding’ functions.
 Optional ‘Target Batch & Target Totalized Weight Control’ function [With Target Batch or Target Totalized Weight finished, the packing process will stop automatically].
 The present Batch Record can be printed automatically and manually.
 Historical Batch Records, Totalizing Reports and Formulas can be queried and printed.
 With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
